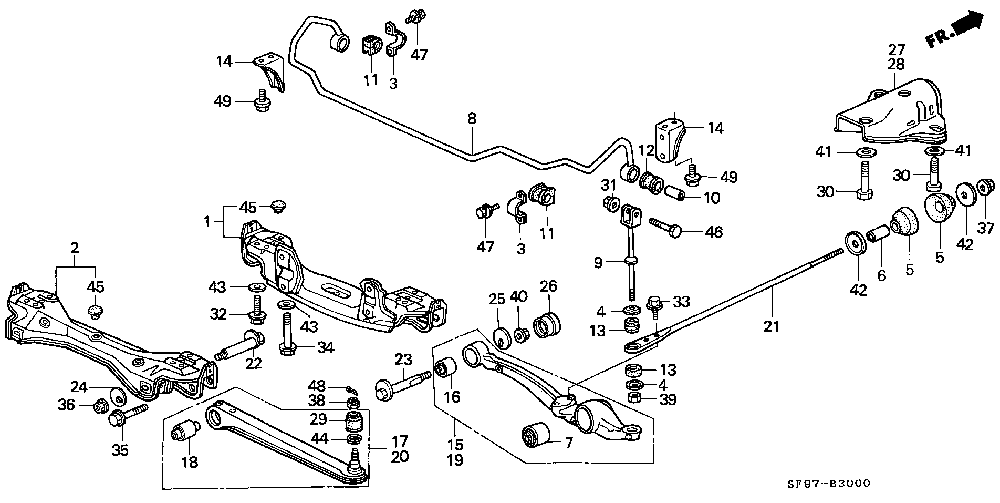

1 BEAM, RR.
SUSPENSION CROSS
3 BRACKET, STABILIZER
4 WASHER A
5 BUSH, FR. SUSPENSION RADIUS ROD (60MM)
6 COLLAR, RADIUS ROD
7 BUSH, SHOCK ABSORBER FORK (HOKUSHIN)
8 SPRING, RR. STABILIZER
9 LINK, RR. STABILIZER
10 COLLAR, STABILIZER INNER BUSH END
11 BUSH, RR. STABILIZER
12 BUSH, STABILIZER END
13 RUBBER A, STABILIZER
14 BRACKET, RR. STABILIZER
15 ARM COMP., R. RR. LOWER (ABS)
16 BUSH, RR. LOWER ARM
19 ARM COMP., L. RR. LOWER (ABS)
21 ROD, RR. RADIUS (NIPPON HATSUJO)
23 BOLT, ADJUSTING
25 PLATE, CAM
26 CAP, LOWER ARM NUT
27 FRAME, R. RR. RADIUS ROD
28 FRAME, L. RR. RADIUS ROD
30 BOLT, TRAILING BRACKET, 12X60
31 NUT, SELF-LOCK, 8MM
32 BOLT, FLANGE, 12X90
33 BOLT, FR. RADIUS ROD
34 BOLT, FLANGE, 12X145
37 NUT, SELF-LOCK, 12MM
39 NUT, SELF-LOCK, 8MM
40 NUT, RR. LOWER ARM, 12MM
41 WASHER, TRAILING, 12MM
42 WASHER, FR. RADIUS ROD
43 WASHER, PLAIN, 12MM
45 GROMMET, SUB FRAME, 15MM
46 BOLT, HEX., 8X35
47 BOLT-WASHER, 8X16
47 BOLT-WASHER, 8X20
49 BOLT, FLANGE, 8X20
