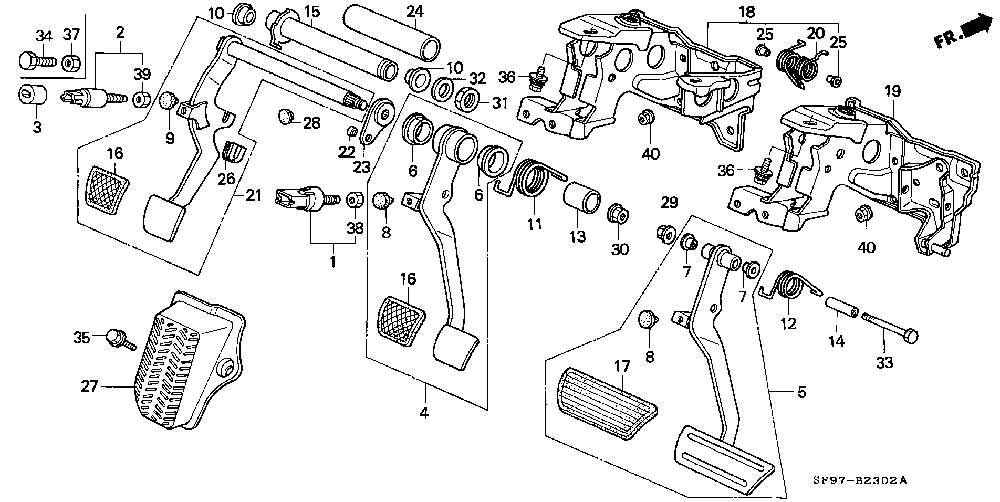

1 SWITCH
ASSY., STOP (TEC)
4 PEDAL COMP., BRAKE
6 BUSH, BRAKE PEDAL
8 PAD, PEDAL STOPPER
9 PAD, PEDAL STOPPER
10 BUSH, CLUTCH PEDAL
11 SPRING, BRAKE RETURN
13 COLLAR, PEDAL
15 BOLT, BRAKE PIVOT
16 COVER, PEDAL
18 BRACKET, PEDAL
20 SPRING, CLUTCH PEDAL
21 PEDAL COMP., CLUTCH
22 BUSH, PEDAL PIN
23 PLATE, CLUTCH PUSH
24 PIPE, SPACER
25 BUSH A, CLUTCH ASSISTANT
26 BUSH B, CLUTCH ASSISTANT
27 BRACKET, FOOTREST
28 COVER, DOOR SWITCH
30 NUT, SELF-LOCK, 12MM
31 NUT, LOCK, 27MM
32 WASHER (BOLT PIVOT)
34 BOLT, HEX., 12X32
35 BOLT-WASHER, 6X16
36 BOLT-WASHER, 10X25
37 NUT, HEX., 12MM
38 NUT, HEX., 10MM
40 NUT-WASHER, 8MM
