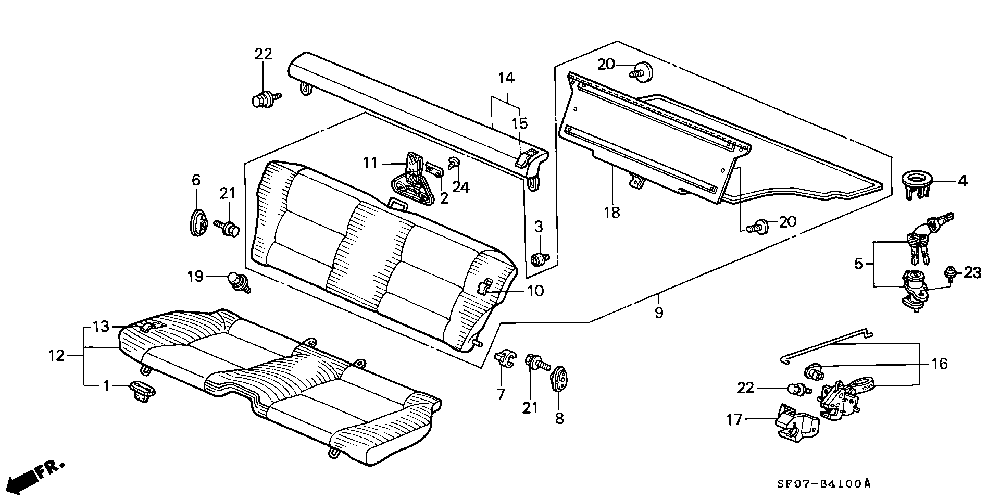

1 RUBBER,
RR. CUSHION SETTING (TS TECH)
2 CAP, CENTER GARNISH *NH89L*
2 CAP, CENTER GARNISH *NH167L*
3 DAMPER, RR. SEAT
4 GARNISH, RR. SEAT LOCK *NH89L*
4 GARNISH, RR. SEAT LOCK *NH167L*
5 CYLINDER, RR. SEAT KEY
6 BRACKET, R. SEAT PIVOT *NH1L*
7 CLIP, RR. SEAT PIN *NH1L*
8 BRACKET, L. SEAT PIVOT *NH1L*
9 SEATBACK ASSY., RR. *NH167L*
9 SEATBACK ASSY., RR. *NH89L*
9 SEATBACK ASSY., RR. (LEATHER) (MEIJI) *NH170L*
9 SEATBACK ASSY., RR. (LEATHER) (MEIJI.) *NH162L*
9 SEATBACK ASSY., RR. (LEATHER) (HOKUYO) *NH170L*
9 SEATBACK ASSY., RR. (LEATHER) (HOKUYO) *NH162L*
10 COVER, RR. SEATBACK TRIM *NH167L*
10 COVER, RR. SEATBACK TRIM *NH89L*
10 COVER, RR. SEATBACK TRIM *NH170L* (LEATHER) (MEIJI)
10 COVER, RR. SEATBACK TRIM *NH162L* (LEATHER) (MEIJI)
10 COVER, RR. SEATBACK TRIM (LEATHER) (HOKUYO) *NH170L*
10 COVER, RR. SEATBACK TRIM (LEATHER) (HOKUYO) *NH162L*
11 GARNISH, RR. SEATBACK CENTER *NH89L*
11 GARNISH, RR. SEATBACK CENTER *NH167L*
12 CUSHION ASSY., RR. SEAT *NH167L*
12 CUSHION ASSY., RR. SEAT *NH89L*
12 CUSHION ASSY., RR. SEAT (LEATHER) (MEIJI) *NH170L*
12 CUSHION ASSY., RR. SEAT (LEATHER) (MEIJI.) *NH162L*
12 CUSHION ASSY., RR. SEAT (LEATHER) (HOKUYO) *NH170L*
12 CUSHION ASSY., RR. SEAT (LEATHER) (HOKUYO) *NH162L*
13 COVER, RR. SEAT CUSHION TRIM *NH167L*
13 COVER, RR. SEAT CUSHION TRIM *NH89L*
13 COVER, RR. SEAT CUSHION TRIM (LEATHER) (MEIJI) *NH170L*
13 COVER, RR. SEAT CUSHION TRIM (LEATHER) (MEIJI.) *NH162L*
13 COVER, RR. SEAT CUSHION TRIM (LEATHER) (HOKUYO) *NH170L*
13 COVER, RR. SEAT CUSHION TRIM (LEATHER) (HOKUYO) *NH162L*
14 SEATBACK ASSY., RR. UPPER *NH167L*
14 SEATBACK ASSY., RR. UPPER *NH89L*
14 SEATBACK ASSY., RR. UPPER (LEATHER) (MEIJI.) *NH170L*
14 SEATBACK ASSY., RR. UPPER (LEATHER) (MEIJI.) *NH162L*
15 COVER, RR. UPPER SEATBACK TRIM *NH167L*
15 COVER, RR. UPPER SEATBACK TRIM *NH89L*
15 COVER, RR. UPPER SEATBACK TRIM (LEATHER) *NH170L*
15 COVER, RR. UPPER SEATBACK TRIM (LEATHER) *NH162L*
16 LOCK ASSY., RR. SEAT
17 COVER, RR. SEAT LOCK
18 MAT, TRUNK FLOOR *NH167L*
18 MAT, TRUNK FLOOR *NH89L*
19 BOLT, CAP WASHER
20 CLIP, MAT, 5MM *NH167L*
20 CLIP, MAT, 5MM *NH89L*
21 BOLT-WASHER, 6X20
22 BOLT-WASHER, 6X16
23 SCREW-WASHER, 4X12
24 SCREW, TAPPING, 4X12
