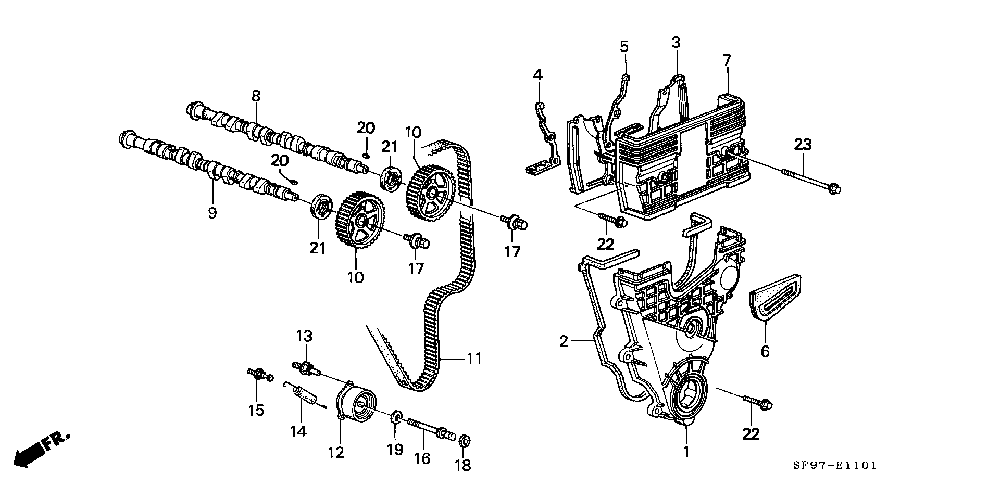

1 COVER
COMP., TIMING BELT LOWER
2 SEAL, TIMING BELT LOWER COVER
3 COVER COMP., TIMING BELT HEAD SIDE
4 SEAL, FR. HEAD SIDE
5 SEAL, RR. HEAD SIDE
6 SEAL, ENGINE MOUNTING BRACKET
7 COVER COMP., TIMING BELT MIDDLE
8 CAMSHAFT, INTAKE
9 CAMSHAFT, EX.
10 PULLEY, TIMING BELT DRIVEN
11 BELT, TIMING (UNITTA)
12 ADJUSTER COMP., TIMING BELT (NIPPON SEIKO)
12 ADJUSTER COMP., TIMING BELT (KOYO)
12 ADJUSTER COMP., TIMING BELT (TOYO)
13 BOLT, TIMING BELT ADJUSTER BASE
14 SPRING, TIMING BELT ADJUSTER
15 BOLT, TIMING BELT ADJUSTER SPRING (NAGOYA RASHI)
16 BOLT, TIMING BELT ADJUSTER
17 BOLT-WASHER, 8X22
18 RUBBER, TIMING BELT ADJUSTER
19 WASHER, 10.3X25
20 KEY, 25.4X13
21 OIL SEAL, 27X43X9 (NOK)
22 BOLT, FLANGE, 6X20
23 BOLT, FLANGE, 6X60
