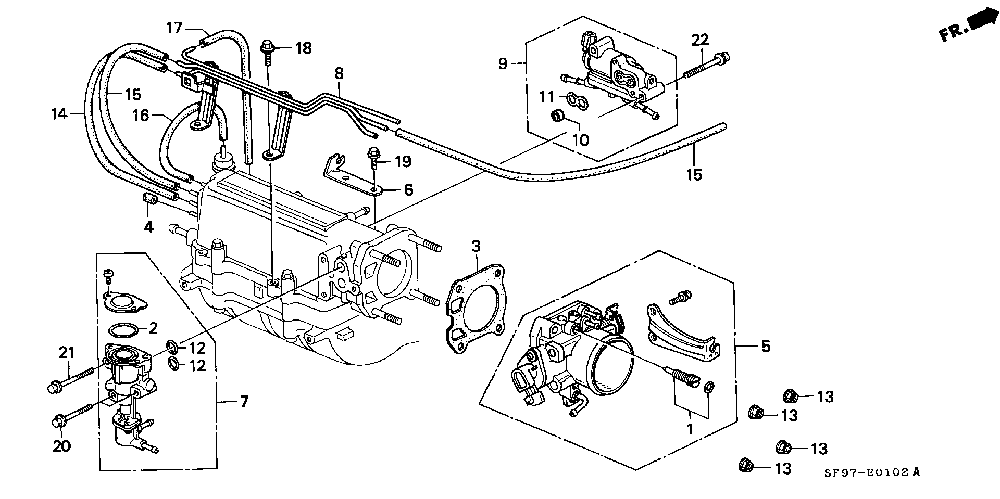

1 SCREW SET
2 O-RING, 31.2X1.9
3 GASKET, THROTTLE BODY (NIPPON LEAKLESS)
4 CAP, SEALING, 4.5MM
5 THROTTLE BODY ASSY. (GF12A)
6 STAY, THROTTLE WIRE
7 VALVE ASSY., FAST IDLE (AF09A)
8 PIPE, INSTALL
9 VALVE ASSY., ELECTRONIC AIR CONTROL
10 FILTER COMP., ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)
11 PACKING, ELECTRONIC AIR CONTROL VALVE (DENSO)
12 O-RING, 15.8X1.9
13 NUT, FLANGE, 8MM
14 TUBE, 3.5X100 (95005-35001-10M)
15 TUBE, 3.5X100 (95005-35001-10M)
16 TUBE, 3.5X170 (95005-35001-10M)
17 TUBE, 3.5X190 (13) (95005-35001-10M)
18 BOLT, FLANGE, 6X12
19 BOLT, FLANGE, 6X14
20 BOLT, FLANGE, 6X30
21 BOLT, FLANGE, 6X40
22 BOLT, FLANGE, 8X50
