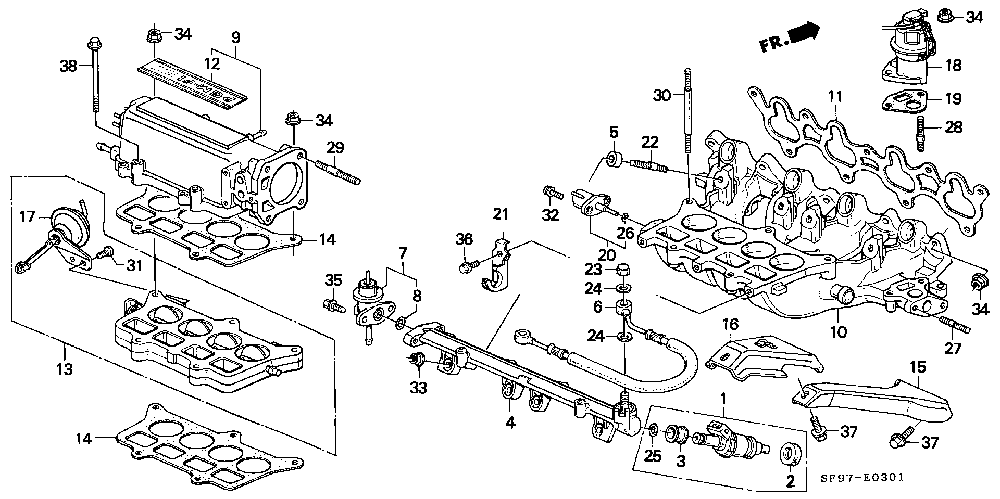

1 PACKING
SET, INJECTOR
2 SEAL RING, INJECTOR (OTSUKA)
3 CUSHION RING, INJECTOR (OTSUKA)
4 PIPE COMP., FUEL
5 INSULATOR, FUEL PIPE
6 HOSE COMP. B, FUEL FEED
7 REGULATOR ASSY., PRESSURE
8 O-RING, PRESSURE REGULATOR
9 MANIFOLD COMP. B, INTAKE
10 MANIFOLD COMP. A, INTAKE
11 GASKET, INTAKE MANIFOLD
12 EMBLEM, INTAKE MANIFOLD (PGM-FI)
13 BODY ASSY., BYPASS VALVE
14 GASKET, BYPASS VALVE
15 STAY, R. IN. MANIFOLD
16 STAY, L. IN. MANIFOLD
17 DIAPHRAGM ASSY.
18 VALVE ASSY., EGR
19 GASKET, EGR VALVE (ISHINO GASKET)
20 SENSOR ASSY., AIR TEMP
21 CLAMP A, FEED HOSE
22 BOLT, STUD, 6X43
23 NUT A, SEALING, 12MM
24 WASHER, SEALING, 12MM
25 O-RING, 7.3X2.2 (ARAI)
26 O-RING, 7.5X1.5
27 BOLT, STUD, 6X20
28 BOLT, STUD, 8X22
29 BOLT, STUD, 8X35
30 BOLT, STUD, 8X70
31 SCREW, PAN, 5X12
32 SCREW-WASHER, 5X16
33 NUT, FLANGE, 6MM
34 NUT, FLANGE, 8MM
35 BOLT, FLANGE, 6X16
36 BOLT, FLANGE, 6X16
37 BOLT, FLANGE, 8X18
38 BOLT, FLANGE, 8X75
