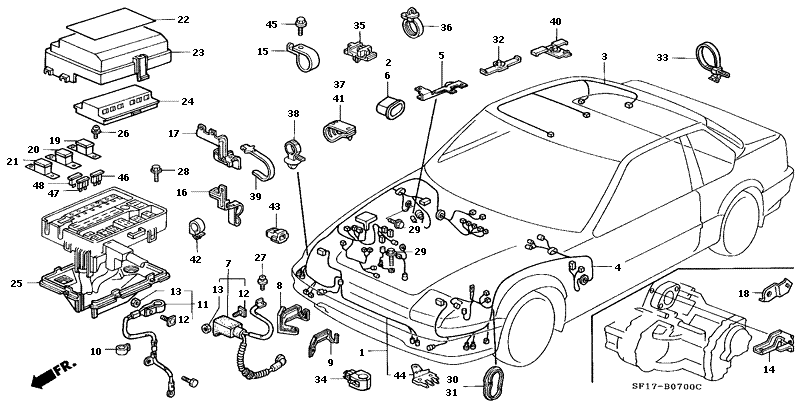

1 HARNESS,
R. CABIN WIRE
2 GROMMET, R.
3 CORD, INTERIOR & SUNROOF
4 HARNESS, L. CABIN WIRE
5 SUB BRACKET, R. ENGINE (PGM-FI)
6 GROMMET, L. HARNESS
7 CABLE ASSY., STARTER (FURUKAWA)
CABLE ASSY., STARTER (SUMITOMO)
11 CABLE ASSY., EARTH (FURUKAWA)
CABLE ASSY., EARTH (SUMITOMO)
12 BOLT, BATTERY TERMINAL (SUMITOMO)
13 NUT, BATTERY TERMINAL (SUMITOMO)
15 CLAMP, ENGINE SUB CORD
16 CLAMP, ENGINE WIRE HARNESS
19 FUSE, BLOCK (30A)
20 FUSE, BLOCK (40A)
21 FUSE, BLOCK (70A)
22 LABEL
23 COVER, UPPER
24 COVER, MAIN FUSE
25 COVER, LOWER
26 SCREW-WASHER, 5X10
27 SCREW-WASHER, 6X12
28 BOLT, 6X13
29 BOLT, EARTH, 6X16
30 GROMMET, R. CABIN
31 GROMMET, L. CABIN
32 CLIP, WIRE HARNESS (BLUE) (HARNESS TAPING)
34 CLIP, WIRE HARNESS (BLACK)
37 CLIP, CABIN WIRE HARNESS (149MM) (WHITE)
38 BAND, WIRE HARNESS (BROWN)(110MM)
40 CLIP, OFFSET (15)
41 CLIP, CABIN WIRE HARNESS (119MM) (BLACK)
45 BOLT, HEX., 6X8
46 FUSE, BLADE (10A)
47 FUSE, BLADE (15A)
48 FUSE, BLADE (20A)
