1 COVER,

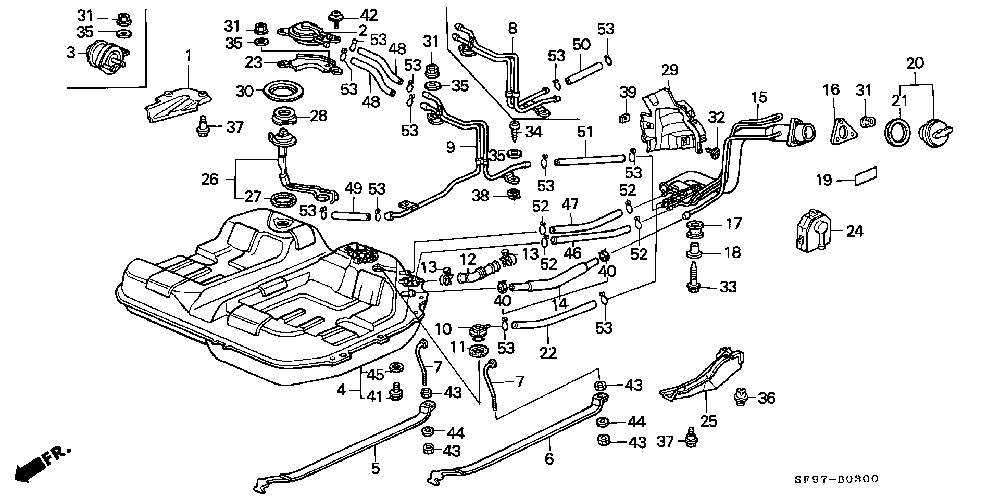

FUEL TANK
2 VALVE, TWO WAY
4 TANK COMP., FUEL
5 BAND, R. FUEL TANK MOUNTING
6 BAND, L. FUEL TANK MOUNTING
7 BOLT, FUEL TANK MOUNTING
9 PIPE COMP., VENT
10 VALVE, FUEL CUT
11 PACKING, FUEL CUT VALVE
12 TUBE, FILLER NECK
13 CLIP, FILLER TUBE
14 TUBE ASSY., BREATHER
15 PIPE COMP., FUEL FILLER
16 PACKING, FUEL FILLER
17 BUSH, FILLER PIPE MOUNT
18 COLLAR, FILLER PIPE MOUNT
19 LABEL, FUEL FILLER CAUTION
20 CAP COMP., FUEL FILLER
21 PACKING, FUEL FILLER CAP
22 TUBE ASSY., VENT
23 BRACKET, TWO WAY VALVE
25 COVER, FUEL TANK
26 METER UNIT, FUEL
27 PACKING, BASE
28 RETAINER, FUEL UNIT
29 COVER, FUEL PIPE
30 CAP, FLOOR HOLE
31 NUT, FLANGE, 5MM
32 SCREW, TAPPING, 5X20
33 BOLT, FILLER PIPE MOUNTING
34 SCREW, TAPPING, 5X12
35 WASHER, PLAIN, 5MM
36 CLIP, TWO WAY VALVE COVER
37 BOLT, FR. FENDER (DACRO COATING)
38 GROMMET, SCREW, 5MM (BLACK)
39 GROMMET, SCREW, 5MM
40 CLIP, AIR BLEED TUBE
41 BOLT, DRAIN PLUG, 12MM
42 SCREW-WASHER, 5X12
43 NUT, HEX., 8MM
44 WASHER, PLAIN, 8MM
45 WASHER, DRAIN PLUG, 12MM
46 TUBE, FUEL, 4.5X170 (95001-45001-60M)
47 TUBE, FUEL, 4.5X195 (95001-45001-60M)
48 TUBE, FUEL, 5.3X80 (95001-55001-60M)
49 TUBE, FUEL, 5.3X100 (95001-55001-60M)
51 TUBE, FUEL, 5.3X160 (95001-55001-60M)
52 CLIP, TUBE (B8)
53 CLIP, TUBE (B10)
