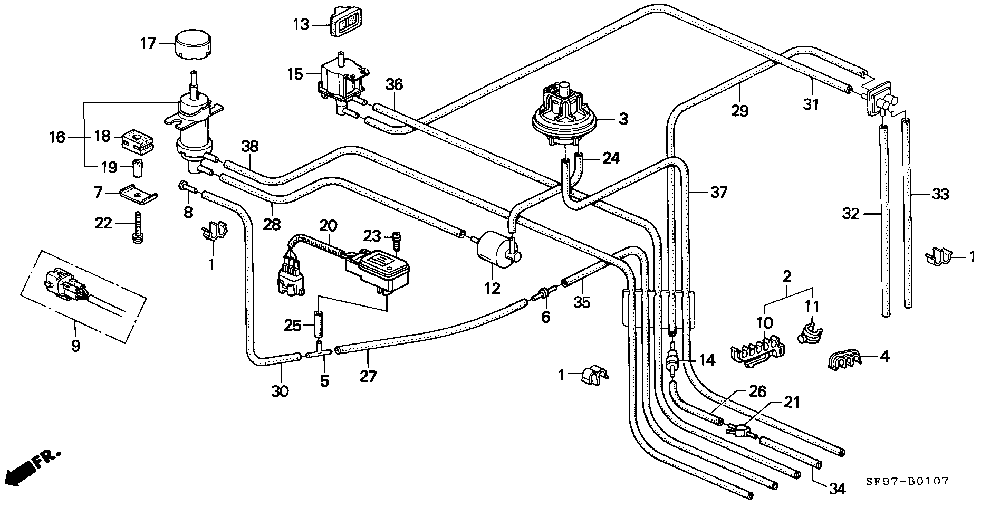

1 CLAMP,
TUBE, 7.5X2
2 CLAMP ASSY., TUBE
3 VALVE ASSY., CONTROL
4 CLAMP, TUBE, 7.5X5
5 JOINT, THREE WAY
6 JOINT, TWO WAY
7 WASHER, FREQUENCY SOLENOID VALVE
8 PLUG, SEALING
9 CORD ASSY.
10 CLAMP A, TUBE
11 CLAMP B, TUBE
12 CHAMBER COMP., VACUUM
13 FILTER ASSY., SOLENOID VALVE
14 VALVE, CHECK
15 VALVE ASSY., IGNITION SOLENOID (#150-B)
16 VALVE ASSY. B, FREQUENCY SOLENOID
17 FILTER ASSY., AIR
18 RUBBER, MOUNTING
19 COLLAR, DISTANCE
20 SENSOR ASSY., MAP
21 JOINT, THREE WAY (3.5)
22 SCREW-WASHER, 4X20
23 SCREW-WASHER, 4X12
24 TUBE, 3.5X30 (95005-35001-10M)
25 TUBE, 3.5X40 (95005-35001-10M)
26 TUBE, 3.5X40 (95005-35001-10M)
27 TUBE, 3.5X65 (95005-35001-10M)
28 TUBE, 3.5X75 (95005-35001-10M)
29 TUBE, 3.5X95 (95005-35001-10M)
30 TUBE, 3.5X100 (95005-35001-10M)
31 TUBE, 3.5X110 (95005-35001-10M)
32 TUBE, 3.5X120 (95005-35001-10M)
33 TUBE, 3.5X120 (95005-35001-10M)
34 TUBE, 3.5X250 (95005-35001-10M)
35 TUBE, 3.5X350 (95005-35001-10M)
36 TUBE, 3.5X440 (95005-35001-10M)
37 TUBE, 2.5X505 (95005-35001-10M)
38 TUBE, 3.5X510 (95005-35001-10M)
