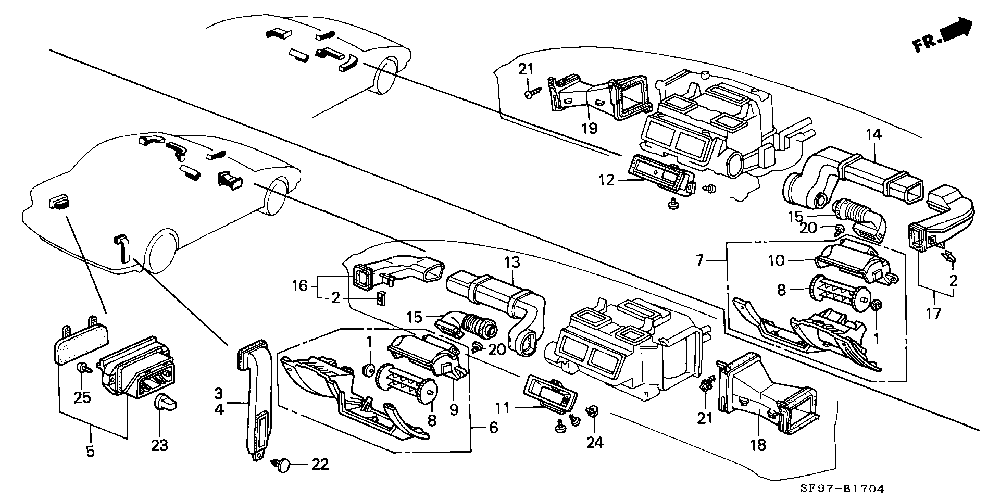

1 BUSH A,
FRESH AIR CASE
2 NUT, CENTER PANEL
3 DUCT, R. RR. OUTLET COMBINATION
4 DUCT, L. RR. OUTLET COMBINATION
5 OUTLET ASSY., RR. AIR
6 COVER ASSY., INSTRUMENT DRIVER LOWER *NH167L*
6 COVER ASSY., INSTRUMENT DRIVER LOWER *NH89L*
8 OUTLET, DRIVER LOWER *NH1L*
9 DUCT, LOWER OUTLET
11 DUCT, CENTER AIR CONDITIONER
13 DUCT, DOOR AIR CONDITIONER
15 DUCT, LOWER VENT
16 BOX ASSY., DRIVER VENTILATION
18 DUCT, HEATER
20 SCREW, TAPPING, 4X16
21 SCREW, TAPPING, 6X20
22 CLIP, RR. COMBINATION DUCT
23 GROMMET, SCREW, 5MM
24 CLIP, MAT, 7MM
25 SCREW, TAPPING, 5X16
