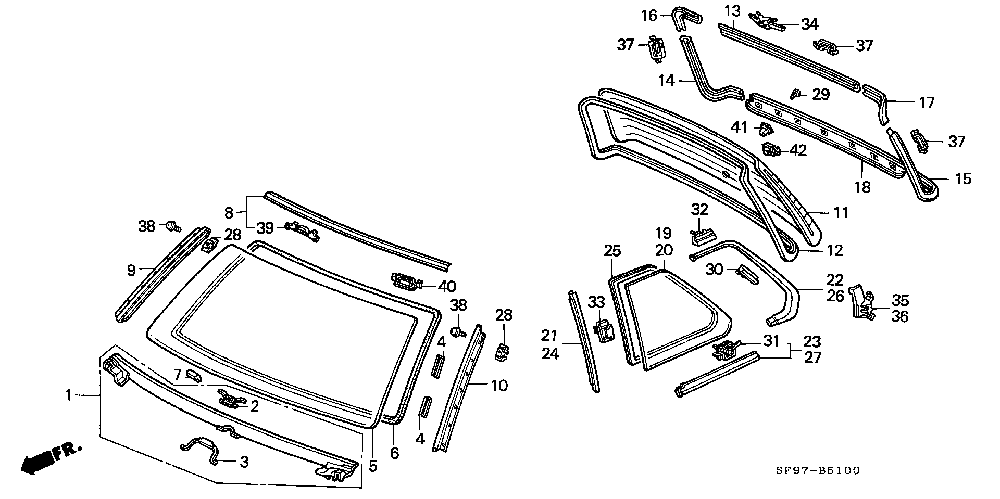

1 MOLDING,
FR. WINDSHIELD LOWER
2 CLIP, FR. LOWER
3 CLIP, FR. WINDSHIELD LOWER MOULDING
4 PROTECTOR, FR. WINDSHIELD GLASS
5 GLASS, FR. WINDSHIELD
6 RUBBER, FR. WINDSHIELD DAM
7 SPACER, FR. WINDSHIELD
8 MOLDING, FR. WINDSHIELD UPPER
9 MOLDING, R. FR. WINDSHIELD SIDE
10 MOLDING, L. FR. WINDSHIELD SIDE
11 GLASS, RR. WINDSHIELD
12 RUBBER, RR. WINDSHIELD DAM
13 MOLDING, RR. UPPER
14 MOLDING, R. RR. SIDE
15 MOLDING, L. RR. SIDE
16 MOLDING, R. RR. UPPER CORNER
17 MOLDING, L. RR. UPPER CORNER
18 MOLDING, RR. LOWER
19 GLASS, R. QUARTER (BLUE)
20 GLASS, L. QUARTER (BLUE)
21 MOLDING, R. FR. QUARTER
22 GARNISH, R. RR. PILLAR
23 MOLDING, R. QUARTER LOWER
24 MOLDING, L. FR. QUARTER
25 TRIM, QUARTER WINDOW
26 GARNISH, L. RR. PILLAR
27 MOLDING, L. QUARTER LOWER
28 CLIP, FR. SIDE MOLDING
29 SCREW, TAPPING, 4X12
30 CLIP, RR. PILLAR GARNISH (A)
31 CLIP, QUARTER LOWER
32 CLIP B, RR. PILLAR GARNISH
33 CLIP, FR. QUARTER MOLDING
34 CLIP, RR. UPPER MOULDING
35 CLIP, R. UPPER CORNER
36 CLIP, L. UPPER CORNER
37 CLIP, RR. WIND MOULDING
38 SCREW, 4X8
39 CLIP, FR. WINDSHIELD UPPER MOLDING
40 CLIP A, FR. WINDSHIELD UPPER MOLDING (ORANGE)
41 GROMMET B, RR. WINDOW MOLDING
42 GROMMET C, RR. WINDSHIELD MOLDING
