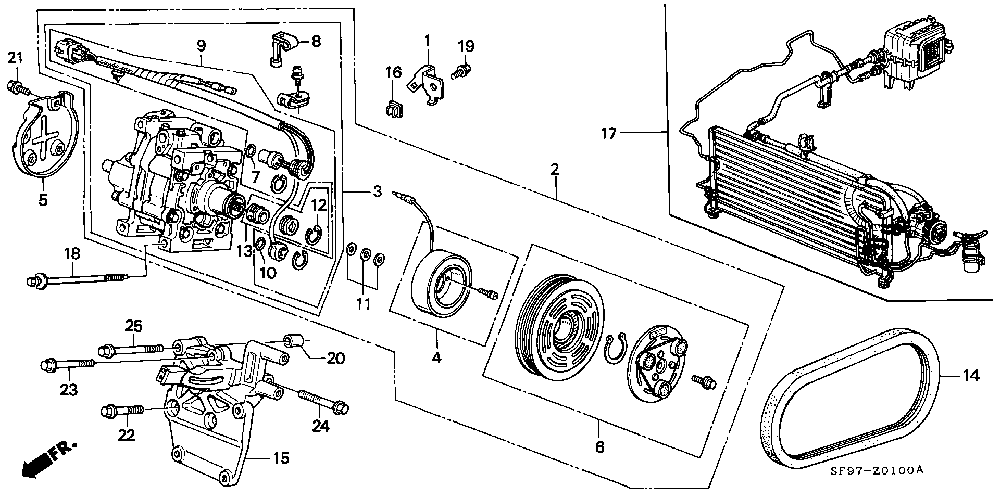

1 STAY,
COMPRESSOR COUPLER
2 COMPRESSOR ASSY. (MATSUSHITA)
3 COMPRESSOR (MATSUSHITA)
4 CLUTCH SET, COIL (MATSUSHITA)
5 INSULATOR, HEAT
6 CLUTCH SET, ROTOR ARMATURE
7 O-RING
8 CLAMP
9 SENSOR SET
10 O-RING
11 SHIM SET
12 CIRCLIP, INTERNAL, 24MM
13 SEAL SET, SHAFT
14 BELT, COMPRESSOR (RIBSTAR)
14 BELT, COMPRESSOR (BANDO)
15 BRACKET, COMPRESSOR
16 GROMMET, SCREW, 6MM
17 GENERAL ASSY., AIR CONDITIONER
18 BOLT-WASHER, SPECIAL, 8X130
19 SCREW, TAPPING, 6X12
20 PIN, DOWEL, 12X20
21 BOLT, FLANGE, 6X10
22 BOLT, FLANGE, 10X40
23 BOLT, FLANGE, 10X55
24 BOLT, FLANGE, 10X65
25 BOLT, FLANGE, 10X70
